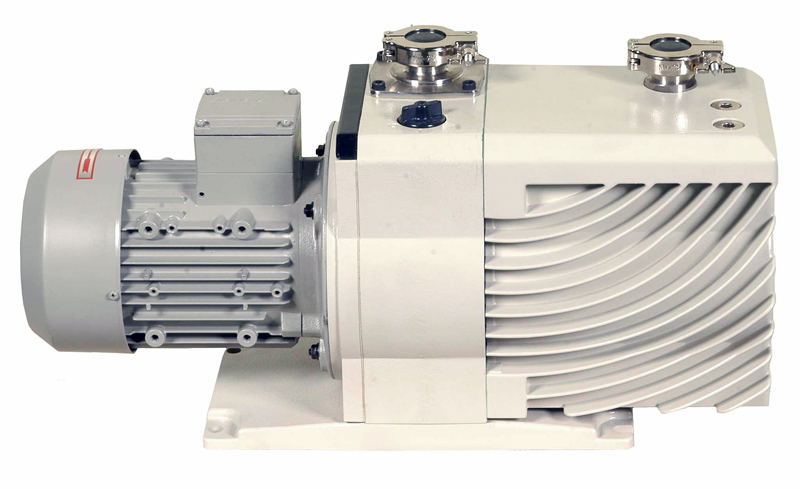

Affordable Quality Vacuum Pumps

Truly Reliable Pumps are affordable quality pumps. Your budget will allow you to afford these great pumps.

 NOW BACKED BY A MANUFACTURER LIFETIME WARRANTY!!!






  • Offering seven sizes ranging from 108 to 1800 liters per minute.

  • Excellent ultimate vacuum capability 5 x 10-4 Torr.

  • Improved anti-suck back device to protect vacuum system in case of sudden stop.

  • International standard inlet and outlet ports with clamps

  • Low noise levels; 50 to 56 dbA.

  • Forced feed lubrication system for constant oil pressure.

  • Adjustable gas ballast valve.

  • Simple repair and maintenance.




  UNIT TRP-6
TRP-12
TRP-24
TRP-36
TRP-48
TRP-60 TRP-90
DISPLACEMENT
60Hz
L/M  108 216 432 648 864 1008 1800
OIL CAPACITY
LITERS 1.3 1.3 1.5 1.8 3.8 5.5 6.5
INLET PORT
KF 25 25 25 25 40 40 40
OUTLET PORT KF 25 25 25 25 40 40 40
POWER
3/60/230-460, 1/60/115 v, 1740 rpm
Kw .55 .55 .75 1.0 1.5 2.2 3.0
NOISE LEVEL dbA 50 50 52 52 56 56 56
WEIGHT LBS  50 55 80 85 140 180 195
ULTIMATE PRESSURE W/ BALLAST CLOSED
Torr       5 x 10-4
ULTIMATE PRESSURE W/ BALLAST OPEN
Torr       5 x 10-3
