Edwards nXDS10i Dry Scroll Vacuum Pump-NEW

  • NXDS10i Scroll Pump
  • NXDS10i Scroll Pump
  • NXDS10i Scroll Pump
  • NXDS10i Scroll Pump
  • NXDS10i Scroll Pump
  • NXDS10i Scroll Pump
  • NXDS10i Scroll Pump
  • NXDS10i Scroll Pump
RRP:
$7,271.00
Your Price:
$6,745.00 (You save $526.00)
SKU:
A73601983
Brand:
Condition:
New
Weight:
65.00 LBS
Shipping:
Free Shipping
Quantity:


Product Description

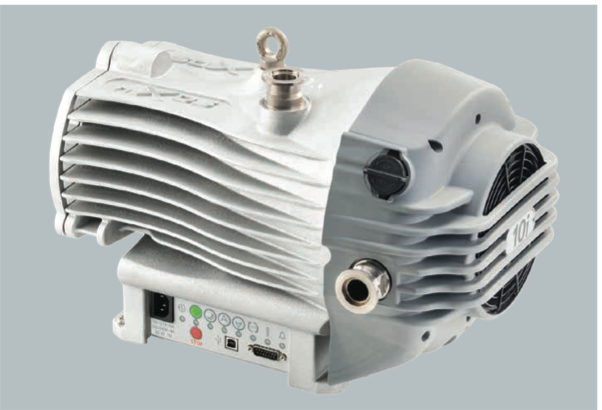

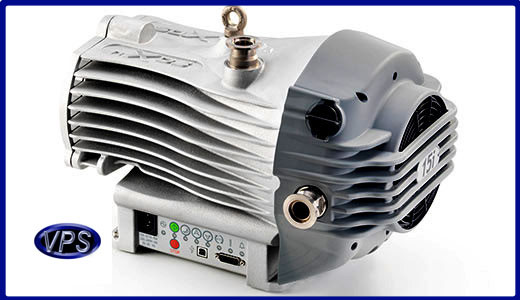

NEW Edwards nXDS10i Dry Scroll Vacuum Pump.

7.5CFM.

100 - 127 V, 200 - 240 V, 1ph 50 - 60 Hz


No OIL! No Mess!


1 year warranty.


Overview

Edwards has built on the success of the previous generation of dry scroll pumps to offer the nXDS line of pumps. These are designed for ease of use and a long life. No oil means no messy leaks or oil changes. At VPS we are experts with this type of pump, we can help you purchase the pump you need and we are alos here for support after the sale. We can provide you with parts to do your own maintenance or we can perform the work for you.

The nXDS10i is the next generation in completely oil free, dry scroll pumps and replaces the XDS10. nXDS improves on legacy XDS pumps by offering increased pumping speeds, combined with lower ultimate pressures, lower power consumption and lower noise. Gas ballast allows for pumping of condensable vapours including, water, solvents, dilute acids and bases. nXDS pumps also feature the latest in tip seal technology giving significantly longer life between tip seal changes. Integrated inverter drive with auto sensing voltage input delivers optimized pumping performance globally. nXDS pumps are designed to be completely field serviceable.



Technical Data

Nominal rotational speed 1800 rpm
Displacement 12.7 m3h-1  /  7.5 ft3min-1
Peak pumping speed 11.4 m3h-1  /  6.7 ft3min-1
Ultimate vacuum (total pressure) 0.007 mbar  /  0.005 Torr
Minimum standby rotational speed 1200 rpm
Speed control resolution (percentage of full rotation speed) 1%
Pumping speed at minimum rotational speed 7.5
Maximum continuous inlet pressure 200 mbar
Motor power 1-ph 280 W
Power connector 1-ph IEC EN60320 C13
Recommended fuse 10A, 250Vac rms
Weight 25.8 kg  /  57 lb
Inlet flange NW25
Exhaust flange NW25
Noise level 52 dB(A)
Vibration at inlet flange < 4.5 mms-1   (rms)
Leak tightness (static) < 1x10-6 mbar ls-1
Operating temperature range 10 to 40 °C  /  41 to 104 °F



Applications

    • General clean pumping applications
    • Scanning Electron Microscopes - SEM
    • Beam lines and high energy physics
    • Backing turbo pumps
    • Centrifuges, ultra-high speed
    • Coating
    • Cryogenics
    • Degassing/curing - oil, epoxy resin
    • Distillation/extraction/filtration
    • Freeze drying
    • Furnaces
    • Gel drying
    • Laboratory bench top vacuum
    • Lasers, gas recovery and recirculation
    • Leak detectors, Helium
    • Load locks and transfer chambers
    • Rare gas recirculation
    • Rare gas recovery
    • Refrigeration manufacture
    • Research and development
    • Rotary, centrifugal evaporators
    • SEM/FIB (ion beam repair)
    • Solvent recovery
    • Surface science instruments




**Photos are for reference only. Actual product may have slight differences.



Product Videos

Edwards nXDS - the great new shape of dry vacuum pumping (01:10)
Edwards, a leading innovator in vacuum pump technology, is proud to present the new nXDS dry scroll pump range. With exceptional pumping capability, ultimate vacuum performance and state-of-the-art design features, Edwards nXDS is the best performing pump in its class.The nXDS is up to 20 times quieter than other pumps. Its intelligent control functions and up to five year service interval offer low cost of ownership, making it the small dry pump of choice for today's most advanced technologies. Watch the video to find out more!
  • Edwards nXDS - the great new shape of dry vacuum pumping
    Edwards nXDS -...
    Edwards, a leading innovator in vacuum pump technology, is pro...
  • Edwards nXDS Scroll Pump Tip Seal Change Video
    Edwards nXDS S...
    This video will demonstrate how to change the tip seal on an E...
