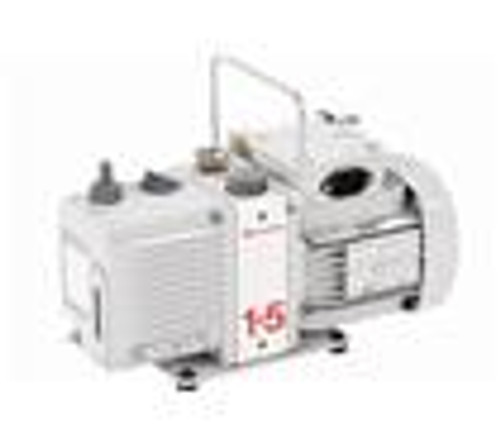

NEW Edwards E2M1.5 Vacuum Pump

  • Edwards E2M1.5 Vacuum Pump
30.00 LBS
Calculated at checkout

Product Description

NEW Edwards E2M1.5 Vacuum Pump.

1.2 CFM.

1 year warranty.



This tiny dynamo gives the user incredible performance in a very small pump. The E2M1.5 may be a small capacity vacuum pump, but it has the same performance and reliability of its big brothers. Small EM series pumps are rugged mechanical oil-sealed pumps for laboratory and industrial uses. Compact and quiet, they feature advanced lubrication circuits, high reliability, and accessories to suit specific application needs.


Technical Data

Displacement (swept volume)
50 Hz 1.8 m3h-1 / 1 ft3min-1
60 Hz 2.2 m3h-1 / 1.3 ft3min-1
Speed (Pneurop 6602)
50 Hz 1.6 m3h-1 / 0.8 ft3min-1
60 Hz 2.0 m3h-1 / 1.2 ft3min-1
Ultimate vacuum (total pressure)
  without gas ballast 3 x 10-3 mbar / 2.3 x 10-3 Torr
  with gas ballast 2.5 x 10-2 mbar / 1.9 x 10-2 Torr
Inlet connection NW10 flange
Outlet connection Nozzle 11 mm external diameter removable from hole tapped 3/8 inch BSP
Maximum permitted pressure at outlet 0.5 bar gauge / 7 psig
Maximum inlet pressure for water vapour 15 mbar / 11 Torr
Maximum water vapour pumping rate 16 gh-1
Motor power 50/60 Hz (IP54) 0.16 kW
Nominal rotation speed 50/60Hz 2800/3400 rpm
Power connector IEC EN60320 C13
Operating temperature range 12 - 40 °C
Weight 10 kg / 22 lbs
Noise 54 dB (A) @ 50 Hz
Oil capacity -   max 0.28 litre
min 0.2 litre
Recommended oil (supplied) Ultragrade 15

Features and Benefits

    • The pump is designed for reliable, long-term operation.
    • Compact dimensions.
    • Low energy consumption.
    • The pump is a free-standing unit.
    • The drive is provided through a flexible coupling by a single-phase or three-phase (four pole) motor.
    • The motors are totally enclosed and are cooled by the motor-cooling fan.
    • Easy to use controls
    • Pressure die cast oil box with integral oil seals prevents oil leaks.
    • Gas ballast valve for large water vapor handling capacit

Typical applications:

    • Freeze Drying
    • Vacuum Drying
    • Degassing
    • Concentrating
    • Vacuum Distillations
    • Vacuum Manifold/Schlenk Line
