Product Description

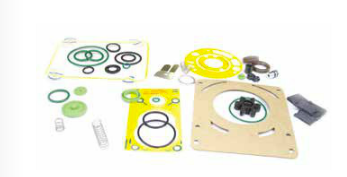

Edwards RV8 Major Repair Kit 65201131RV8
Service Bundle
Save time and order everything needed for a complete Edwards RV8 vacuum pump rebuild in one package.
Includes:
-
P65201131 Clean and Overhaul Kit
-
A65401130 RV8 Blade Kit
-
1 Liter Plus UG19 Oil - Ultragrade 19 Equivalent
-

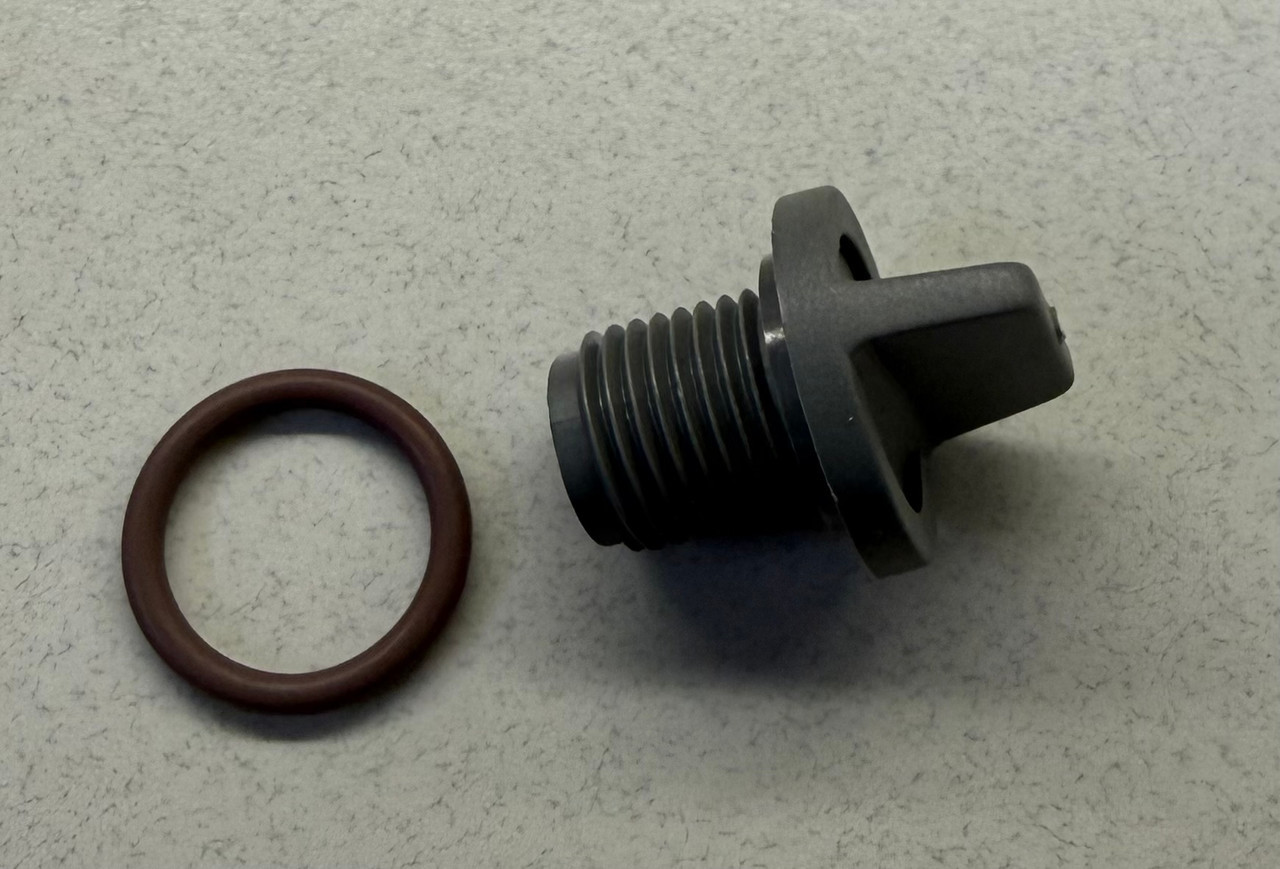

Oil Drain Plug and O-Ring
Compatible with Edwards RV8 rotary vane vacuum pumps.
Complete BOM - Edwards RV8 Major Repair Kit
| Part Number | Item Description | Qty |
|---|---|---|
| A65401130 | Blade Kit, Edwards RV8 | 1 |
| A25908127 | Oldham Coupling RV3/5/8/12 | 1 |
| A21071077 | Coupling Element RV Pump | 1 |
| A25908123 | Exhaust Diaphragm Viton RVP | 1 |
| A25908129 | Oil Pressure Valve RV | 1 |
| A65201029 | RV Reed Valve | 1 |
| A65201005 | Air Bleed Assy RV | 1 |
| A25908226 | RV Dump Valve | 1 |
| 20525-049 | Spring - Inlet Valve, St/St RVP | 1 |
| 20525-047 | Spring - Dump Valve RV | 2 |
| 20525-048 | Spring - Ballast Control, St/St | 1 |
| 27160707 | Top Plate Gasket | 1 |
| A27160005 | Oil Box Printed Gasket RV | 1 |
| A27160006 | Printed Gasket Cartridge RV | 1 |
| A27160008 | Seal Carrier Gasket | 1 |
| A65201019 | Motor Ducting Sheet | 1 |
| U Seal | U Seal FKM | 1 |
| Shoulder Washer | Ballast Washer | 1 |
| H02109125 | Shaft Spacer | 1 |
| Shaft Seal | Shaft Seal BABSL 20 x 30 x 7 | 1 |
| O-Ring | Nitrile 21.5 ID x 3.0 Section | 3 |
| H02122079 | O-Ring 49.5 ID x 3.0 | 1 |
| O-Ring | Nitrile 32.5 ID x 3.0 | 1 |
| O-Ring | FKM 7.6 ID x 2.4 | 1 |
| O-Ring | FKM 57.6 ID x 2.4 | 1 |
| O-Ring | Nitrile 42.5 ID x 3.0 | 1 |
| O-Ring | FKM 1.109 ID x .139 | 3 |
| O-Ring | FKM 9.6 ID x 2.4 | 1 |
| O-Ring | FKM 69.5 ID x 3.0 | 1 |
Edwards RV8 Rebuild and Service Information
The Edwards RV8 major repair kit is designed for a complete rebuild of Edwards RV8 oil-sealed rotary vane vacuum pumps. This package combines the P65201131 clean and overhaul kit with the RV8 blade kit, giving you the key vanes, seals, gaskets, valve components, coupling parts, springs, O-rings, oil, and drain plug needed for a thorough service.
A full RV8 rebuild is commonly recommended when the pump has reduced vacuum performance, excessive oil mist, oil contamination, abnormal noise, worn vanes, seal leakage, or extended service hours. Replacing the internal wear components helps restore vacuum performance, reduce downtime, and extend the working life of the pump.
Recommended Products
| Product | Use |
|---|---|
| A65201136 Shaft Sleeve Kit | Recommended when servicing the RV shaft seal area. |
| Plus UG19 Oil - 1 Liter | Recommended oil for Edwards RV rotary vane pumps; equivalent to Edwards Ultragrade 19. |
| A46226000 EMF10 Oil Mist Filter | Oil mist filter for Edwards RV8 vacuum pumps. |
| FF-005 Flushing Fluid | Helpful for flushing contaminated oil from rotary vane pumps before refill. |
