Product Description

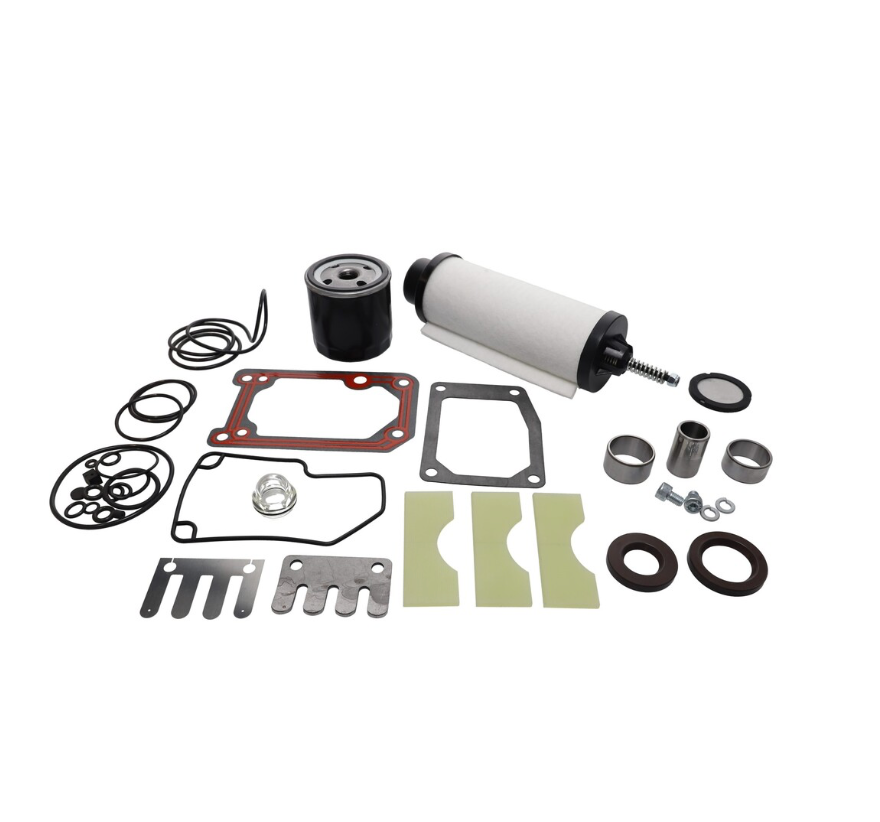

Repair kit for Leybold SOGEVAC SV 40 B
Leybold SV40B Full Bill of Materials
Looking for complete repair kits, filters, vanes, and replacement parts for the Leybold SV40B? View our full Leybold SV40B parts page here.
Seals, O-Rings & Gaskets
- 640020 – Cylindrical Seal, Leybold, Sogevac, SV65B, SV40B, SV40BI — Qty: 1
- 48653700 – O-Ring, Viton, 108 x 3 mm — Qty: 1
- 300168 – Formed O-Ring Gasket, Leybold — Qty: 1
- 79134 – O-Ring, 8 x 2 mm - Viton — Qty: 1
- 82007 – O-Ring, 10.77 x 2.62 mm - Viton — Qty: 4
- 320067 – O-Ring, 63.09 x 3.53 mm - Viton — Qty: 1
- 900048 – O-Ring, 8 x 2 mm - Viton — Qty: 1
- 923031 – O-Ring, Viton — Qty: 1
- PL23970211 – O-Ring, 50 x 3 mm - Viton — Qty: 3
- PL71217410 – O-Ring, 33 x 3.5 mm - Viton — Qty: 1
- PL71237440 – O-Ring, 110.72 x 3.53 mm - Viton — Qty: 1
- PL71417260 – O-Ring, 9.12 x 3.53 mm - Viton — Qty: 2
- PL71420740 – Exhaust Flange Gasket - Viton — Qty: 1
- PL71420750 – Flat Gasket, Paper, Leybold, Sogevac, SV40B, SV40BI — Qty: 1
- PL71421340 – O-Ring, 82.14 x 3.53 mm - Viton — Qty: 1
- PL71217582 – O-Ring, 27 x 2.5 mm - Viton — Qty: 1
Valves & Internal Components
- PL71015460 – Valve Intake, Viton, Leybold, Sogevac — Qty: 1
- PL71417060 – Membrane, Disk, 12 x 12 mm, Leybold, Sogevac — Qty: 1
- PL71420830 – Plate, Valve, 17-7 Stainless Steel, Leybold, Sogevac — Qty: 1
- PL71420840 – Stop Valve, CRS, Leybold, Sogevac BI — Qty: 1
- PL71212503 – Float Valve Seal, Leybold, Sogevac — Qty: 1
Rotor, Vanes & Sleeves
- 71420810G – Leybold Vane - GX — Qty: 3
- PL971424900 – Sleeve, Steel, 32 x 37 x 20 mm, Leybold, Sogevac BI — Qty: 1
- PL71420790 – Sleeve, Steel, 30 x 35 x 17 mm, Leybold, Sogevac BI — Qty: 1
- PL71421170 – Sleeve, Rotor Ring SPCL SV40B, Leybold, Sogevac BI — Qty: 1
Shaft Seals & Mechanical
- 310112 – Shaft Seal, Leybold, Sogevac — Qty: 1
- 310123 – Shaft Seal, Leybold, Sogevac — Qty: 1
- 420056 – Lock Washer, Split, M8, Leybold, Sogevac — Qty: 2
Filters & Service Items
- PL71421180 – Exhaust Filter, Leybold SV40B — Qty: 1
- 53100200 – Oil Filter - Multiple Brands — Qty: 1
Sight Glass
- PL71212428 – Oil Sight Glass, Leybold, Sogevac — Qty: 1
Recommended Maintenance Items
For best performance and longer pump life, we recommend replacing worn vanes, exhaust filters, oil filters, and seals during service intervals. Browse the full Leybold SV40B parts and repair kits page for additional rebuild and maintenance components.
