Product Description

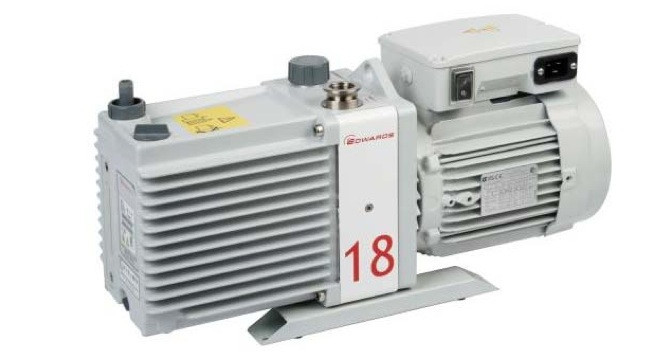

Edwards E2M18 Two-Stage Rotary Vane Vacuum Pump
OEM part number: A36321925
Factory configuration: low-voltage, 50/60 Hz, 3-phase, PFPE
Call for pricing and availability. This factory configuration is quoted to order.
Overview
Edwards E2M pumps are proven oil-sealed two-stage rotary-vane pumps designed for reliable high-vacuum duty. The range provides strong pumping speed, low ultimate pressure and multiple factory preparations for laboratory, OEM and industrial systems.
| Pumping speed | Ultimate pressure | Connections | Sound / weight |
|---|---|---|---|
| 17.0 m³/h at 50 Hz; 20.4 m³/h at 60 Hz | 1 × 10⁻³ mbar | NW25 | 39 kg / 86 lb; 57 dB(A) |
Configuration
| Field | This product |
|---|---|
| Edwards OEM part number | A36321925 |
| Model | E2M18 |
| Electrical / factory configuration | low-voltage, 50/60 Hz, 3-phase, PFPE |
| Pump preparation | PFPE-prepared |
| Purchase status | Call for pricing and availability |
Features
- Two-stage design provides low ultimate pressure with dependable pumping speed.
- Gas ballast supports condensable-vapor handling.
- Oil-sealed mechanism provides sealing, lubrication and heat removal.
- Factory electrical and application-specific preparations simplify system integration.
- Serviceable design with globally supported Edwards consumables and spares.
Technical Specifications
| Specification | Value |
|---|---|
| Peak pumping speed | 17.0 m³/h at 50 Hz; 20.4 m³/h at 60 Hz |
| Ultimate pressure, gas ballast closed | 1 × 10⁻³ mbar |
| Ultimate pressure, gas ballast open | 1.5 × 10⁻² mbar |
| PFPE-prepared ultimate pressure | 1 × 10⁻² mbar |
| Inlet | NW25 |
| Water-vapor tolerance / capacity | 20 mbar / 0.3 kg/h |
| Motor power | 0.55 kW at 50 Hz; 0.75 kW at 60 Hz |
| Oil capacity | 0.75-1.05 L |
| Weight / typical sound level | 39 kg / 86 lb; 57 dB(A) |
| Recommended oil | Edwards Ultragrade Performance 19; PFPE lubricant for PFPE-prepared pumps |
Performance and electrical data vary by frequency and factory configuration. Confirm the part number and motor requirements before ordering.
Performance Curve
Available E2M18 Configurations
| Edwards part number | Electrical / factory configuration | Preparation | VPS price |
|---|---|---|---|
| A36325984 | 115/200-230 V, 50/60 Hz, 1-phase, PFPE | PFPE-prepared | Call |
| A36325904 | 100/200 V set 200 V, 50/60 Hz, 1-phase, PFPE | PFPE-prepared | Call |
| A36321925 (this pump) | low-voltage, 50/60 Hz, 3-phase, PFPE | PFPE-prepared | Call |
| A36317984 | 115/200-230 V, 50/60 Hz, 1-phase | Standard hydrocarbon oil | Call |
| A36315904 | 100/200 V set 200 V, 50/60 Hz, 1-phase | Standard hydrocarbon oil | Call |
| A36315903 | 220/240 V, 50/60 Hz, 1-phase, legacy motor | Standard hydrocarbon oil | Call |
| A36310925 | low-voltage, 50/60 Hz, 3-phase | Standard hydrocarbon oil | Call |
| A36310905 | high-voltage, 50/60 Hz, 3-phase | Standard hydrocarbon oil | Call |
Maintenance, Oil & Filters
| Maintenance item | Recommended product or resource | Part number / notes |
|---|---|---|
| Lubricant | Fomblin Y VAC 06/6 PFPE oil | PPF06-01 — PFPE-prepared pump: do not add or mix with hydrocarbon oil. |
| Repair / service kit | E2M18 clean and overhaul kit | 36301131 |
| Filter | EMF20 oil mist filter | A46229000 |
| Resource Center | Edwards E2M Series Vacuum Pump Resource Center | Kits, oil, filters, manuals and maintenance guidance. |
Applications
Vacuum furnaces, freeze drying, coating, distillation, drying, degassing, research systems, backing service and general industrial vacuum.
Resources
Need help confirming the correct configuration?
Have the required voltage, phase, frequency and process details ready. We will help verify the Edwards part number.
