Product Description
Edwards E2M80 Two-Stage Rotary Vane Vacuum Pump
OEM part number: A36517934
Factory configuration: FX IE3 Asia, 50/60 Hz, 3-phase, PFPE
Call for pricing and availability. This factory configuration is quoted to order.
Overview
Edwards E2M pumps are proven oil-sealed two-stage rotary-vane pumps designed for reliable high-vacuum duty. The range provides strong pumping speed, low ultimate pressure and multiple factory preparations for laboratory, OEM and industrial systems.
| Pumping speed | Ultimate pressure | Connections | Sound / weight |
|---|---|---|---|
| 74 m³/h at 50 Hz; 90 m³/h at 60 Hz | 3.0 × 10⁻³ / 5.0 × 10⁻³ mbar | NW40 / NW25 | IP55; 65 dB(A) |
Configuration
| Field | This product |
|---|---|
| Edwards OEM part number | A36517934 |
| Model | E2M80 |
| Electrical / factory configuration | FX IE3 Asia, 50/60 Hz, 3-phase, PFPE |
| Pump preparation | PFPE-prepared |
| Purchase status | Call for pricing and availability |
Features
- Two-stage design provides low ultimate pressure with dependable pumping speed.
- Gas ballast supports condensable-vapor handling.
- Oil-sealed mechanism provides sealing, lubrication and heat removal.
- Factory electrical and application-specific preparations simplify system integration.
- Serviceable design with globally supported Edwards consumables and spares.
- HC, azide-compatible and PFPE-prepared variants are available by model.
Technical Specifications
| Specification | Value |
|---|---|
| Peak pumping speed | 74 m³/h at 50 Hz; 90 m³/h at 60 Hz |
| Ultimate pressure, gas ballast closed / open | 3.0 × 10⁻³ / 5.0 × 10⁻³ mbar |
| Inlet / outlet | NW40 / NW25 |
| Water-vapor tolerance / capacity | 5 mbar / 0.3 kg/h |
| Motor power | 2.2 kW at 50 Hz; 3.0 kW at 60 Hz |
| Dimensions / weight | 889 × 266 × 429 mm; 104 kg / 229 lb |
| Enclosure / typical sound level | IP55; 65 dB(A) |
| Recommended lubricant | Ultragrade Performance 70 for HC/AZ; PFPE lubricant for FX |
Performance and electrical data vary by frequency and factory configuration. Confirm the part number and motor requirements before ordering.

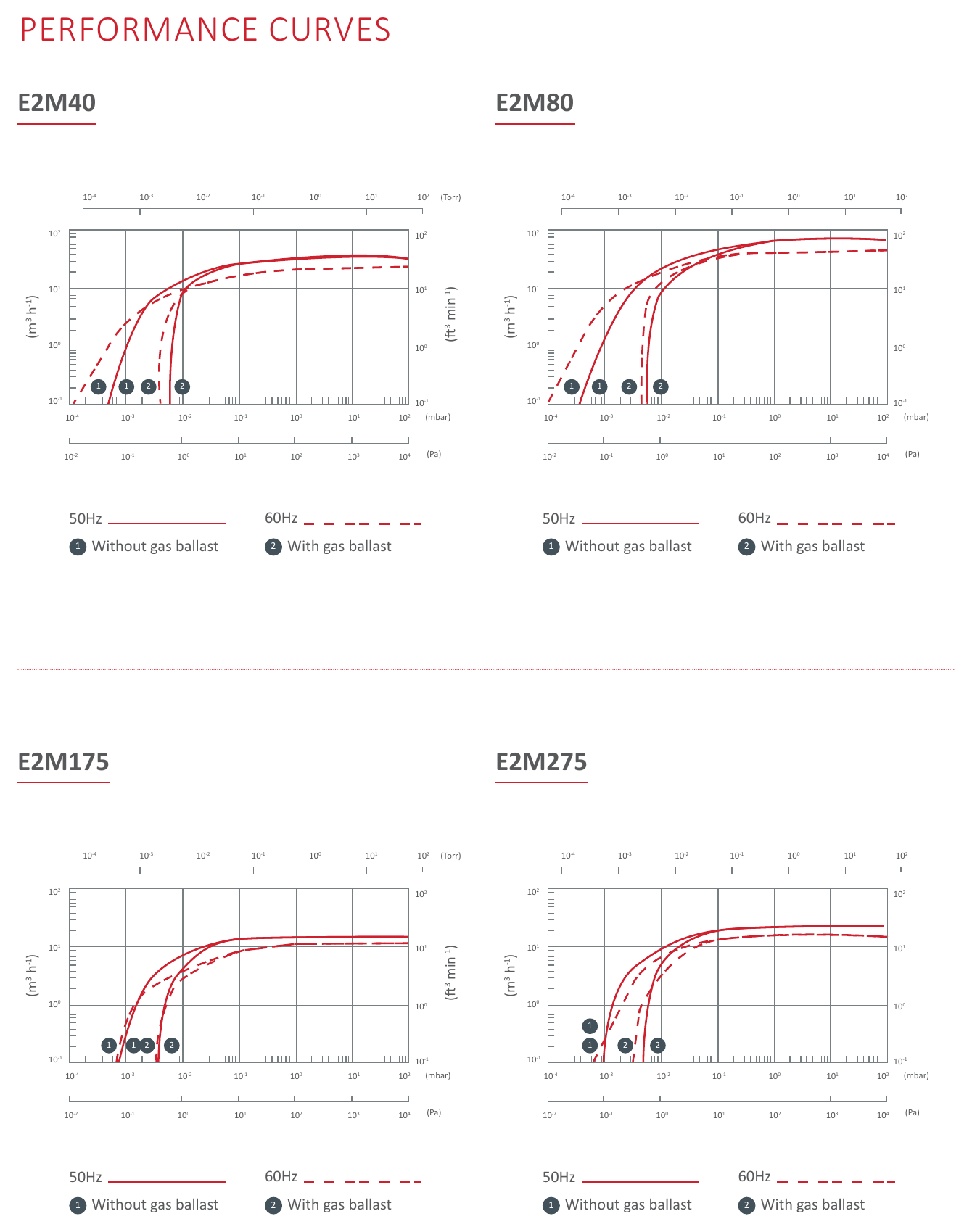

Performance Curve
Available E2M80 Configurations
| Edwards part number | Electrical / factory configuration | Preparation | VPS price |
|---|---|---|---|
| NRY7TV000 | HC IE3 Canada, 575 V, 60 Hz, 3-phase | Hydrocarbon oil | Call |
| A36517940 | FX IE3 EU/US, 50/60 Hz, 3-phase, PFPE | PFPE-prepared | Call |
| A36517934 (this pump) | FX IE3 Asia, 50/60 Hz, 3-phase, PFPE | PFPE-prepared | Call |
| A36511000 | FX bare shaft, IEC motor mounting, PFPE | PFPE-prepared | Call |
| A36507940 | AZ IE3 EU/US, 50/60 Hz, 3-phase | Azide-compatible | Call |
| A36504940 | HC IE3 EU/US, 50/60 Hz, 3-phase | Hydrocarbon oil | Call |
| A36504934 | HC IE3 Asia, 50/60 Hz, 3-phase | Hydrocarbon oil | Call |
| A36501000 | HC bare shaft, IEC motor mounting | Hydrocarbon oil | Call |
| A36507934 | AZ IE3 Asia, 50/60 Hz, 3-phase | Azide-compatible | Call |
Maintenance, Oil & Filters
| Maintenance item | Recommended product or resource | Part number / notes |
|---|---|---|
| Lubricant | Fomblin Y VAC 06/6 PFPE oil | PPF06-01 — PFPE-prepared pump: do not add or mix with hydrocarbon oil. |
| Repair / service kit | E2M80 major service kit | 36501814ED |
| Filter | Internal oil filter | 22304041 |
| Resource Center | Edwards E2M Series Vacuum Pump Resource Center | Kits, oil, filters, manuals and maintenance guidance. |
Applications
Vacuum furnaces, freeze drying, coating, distillation, drying, degassing, research systems, backing service and general industrial vacuum.
Resources
- Edwards E2M Series Vacuum Pump Resource Center
- Official Edwards E2M80 product information
- Technical data / instruction resource
Need help confirming the correct configuration?
Have the required voltage, phase, frequency and process details ready. We will help verify the Edwards part number.
