Product Description
Edwards EDO100 Dry Scroll Vacuum Pump
OEM part number: A50871954
Factory configuration: 230 V delta / 400 V wye, 50 Hz, 3-phase, 2.2 kW
Overview
The Edwards EDO65-100 industrial dry scroll range delivers constant high-throughput rough-vacuum performance in a compact, modular and energy-efficient package. Its dual-inlet scroll mechanism is designed for continuous industrial duty and straightforward service.
| Model | Part number | Variant | Purchase status |
|---|---|---|---|
| EDO100 | A50871954 | Industrial EDO configuration | Call for pricing and availability |
Features
- Dry, oil-free vacuum path eliminates routine vacuum-pump-oil service.
- Air-cooled package for clean rough- and medium-vacuum applications.
- Serviceable scroll mechanism with model-specific tip-seal kits.
- Dual-inlet industrial scroll mechanism for high throughput.
- IP54 three-phase package for industrial rough vacuum.
Technical Specifications
| Specification | Value |
|---|---|
| Pumping speed | 100.8 m³/h (0.028 m³/s) |
| Ultimate pressure | 1.5 mbar (150 Pa) |
| Rated power | 2.2 kW |
| Supply | 230 V delta / 400 V wye, 50 Hz, 3-phase, 2.2 kW |
| Weight | 53 kg |
| Dimensions (L × W × H) | 446 × 447 × 435 mm |
| Noise level | 78 dB(A) |
| IP rating | IP54 |
Confirm voltage, frequency, variant and connection requirements against the Edwards part number before ordering.

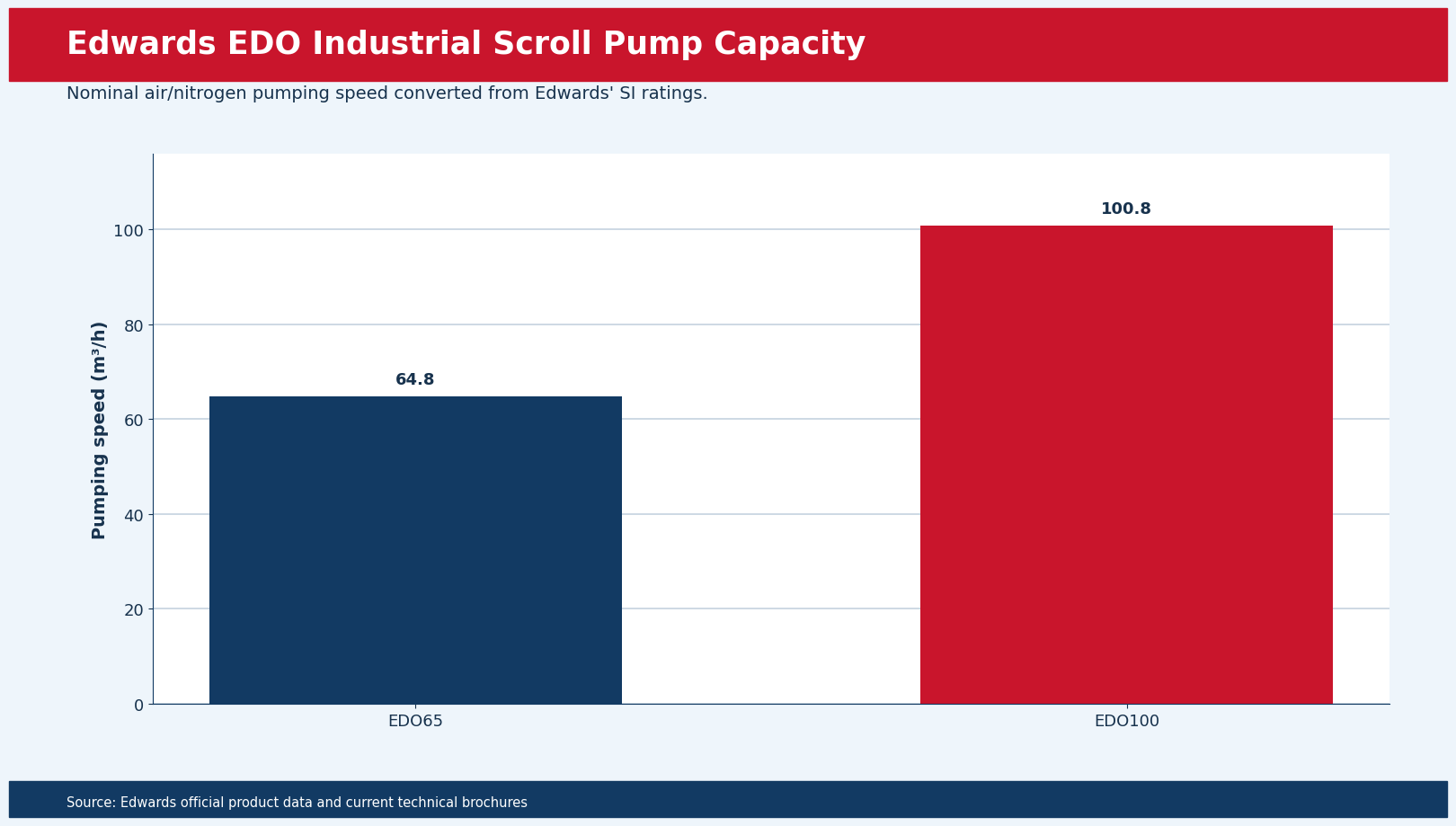

Performance
Available EDO Configurations
| Model / variant | Edwards part number | Factory configuration | Pricing |
|---|---|---|---|
| EDO100 | A50871955 | 200 V delta, 50 Hz, 3-phase, 2.2 kW | Call |
| EDO100 | A50871954 | 230 V delta / 400 V wye, 50 Hz, 3-phase, 2.2 kW | Call |
| EDO65 | A50871959 | 200 V delta 50 Hz; 208/230 V delta or 380 V wye 60 Hz, 3-phase | Call |
Service Kits, Filters & Resources
| Service item | Recommended product or resource | Part number / notes |
|---|---|---|
| Tip-seal service | Confirm EDO tip-seal service parts | Provide the EDO model, pump part number and serial number. |
| Exhaust silencer | Edwards EDO exhaust silencer kit A50871100 | A50871100 |
| Resource Center | Edwards Scroll Pump Complete Resource Center | Repair kits, parts, maintenance guidance, manuals and technical resources. |
| Configuration assistance | Email Vacuum Pump Supply / Request Help | Send the pump model, part number, voltage and application details. |
Applications
Backing turbomolecular pumps, laboratory vacuum, mass spectrometry, research systems, coating, clean process vacuum, leak detection and OEM equipment. Confirm process compatibility for corrosive or condensable vapours.
Need configuration help?
We will verify the Edwards part number, voltage, variant, inlet and service accessories.
