Product Description
HC - IE3 ASIA 50Hz
New EH500 mechanical booster • Part A30205934

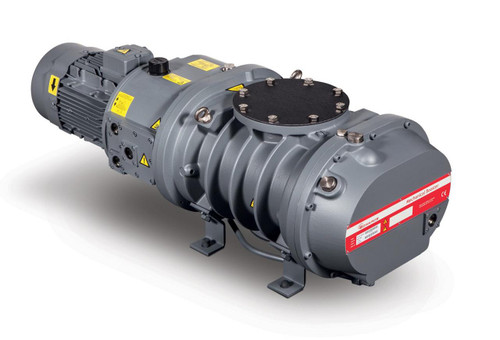

The Edwards EH500 mechanical booster uses a hydrokinetic drive so it can assist pump-down from atmospheric pressure while providing automatic overload protection. This page covers part A30205934.
Features
- Hydrokinetic drive can reduce total pump-down time by up to 50%
- Automatic overload and overheating protection
- No bypass line, pressure switch or inverter required for standard installation
- HC hydrocarbon-oil and FX PFPE-prepared configurations

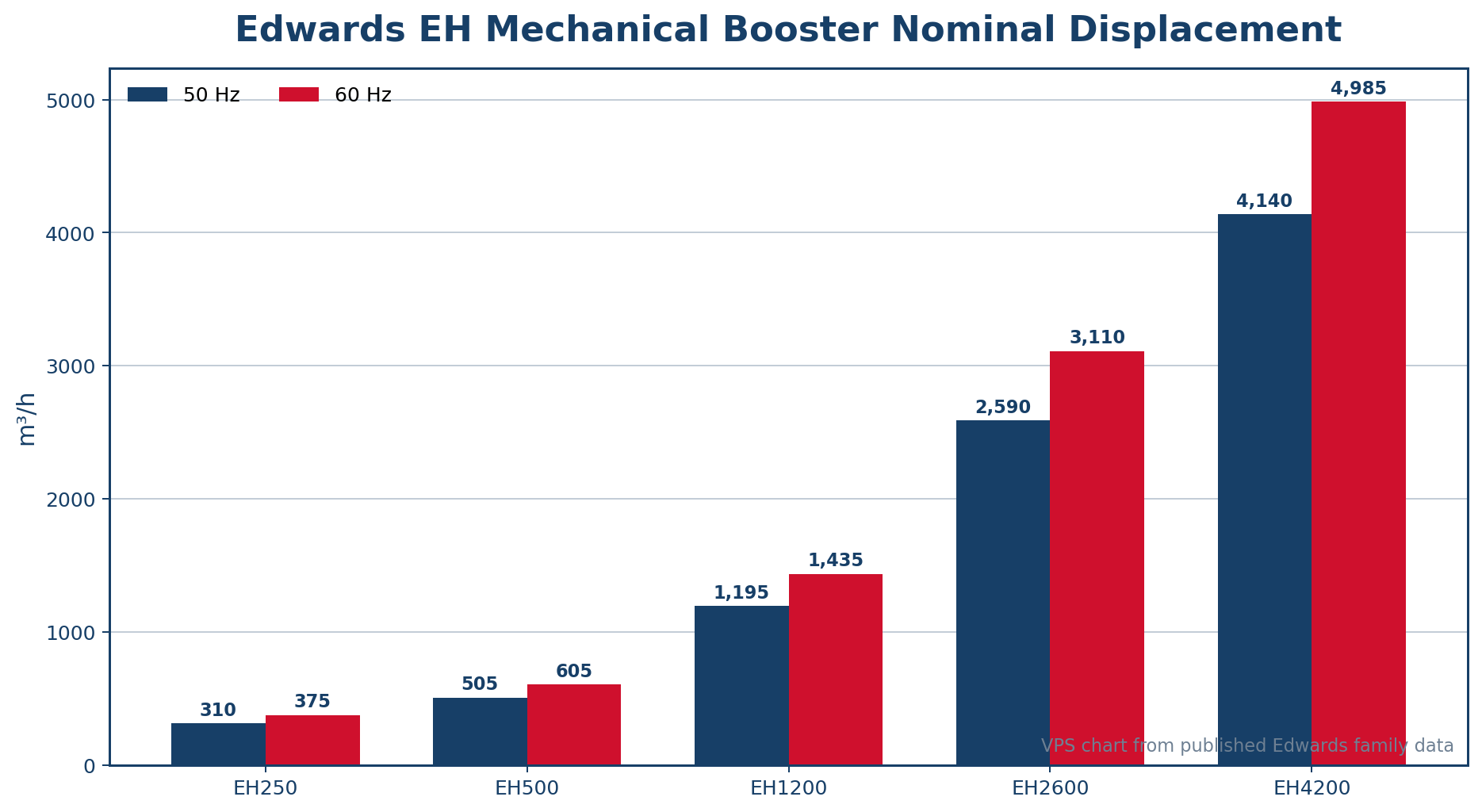

Performance Graph
The graph is a VPS presentation of published Edwards family data. Confirm operating point, backing-pump capacity, process gas and motor selection before ordering.
Technical Specifications
| Specification | Value |
|---|---|
| Model | EH500 |
| Part number | A30205934 |
| Selected configuration | HC - IE3 ASIA 50Hz |
| Nominal displacement | 505 m³/h (300 cfm) at 50 Hz; 605 m³/h (335 cfm) at 60 Hz |
| Maximum pressure differential | 110 mbar (83 Torr) at 50 Hz; 90 mbar (68 Torr) at 60 Hz |
| Inlet connection | DN 100 ISO-F |
| Outlet connection | DN 63 ISO-F |
| Motor / drive | 2.2 kW / 3 hp |
| Cooling | Air cooled |
| Sound level | 70 dB(A) |
| Typical weight | 233 lb (106 kg) |
| Typical dimensions | 791 × 305 × 265 mm (L × W × H) |
| Lubricant capacity | 1.5 L coupling cover; 0.125 L shaft-seal reservoir |
| Ultimate pressure | 10 Pa nominal |
| Protection | IP44 |
Available Configurations
| Part number | Configuration | Electrical / drive | Gas flow | Availability |
|---|---|---|---|---|
| A30205934 | HC - IE3 ASIA 50Hz | 3Ph 200V 50Hz | Standard EH flow orientation | This configuration |
| A30205945 | HC - IE3 EU/CN 50Hz | 3Ph 380–400V 50Hz | Standard EH flow orientation | Call for Pricing |
| A30206934 | HC - IE3 ASIA 60Hz | 3Ph 200V / 380V 60Hz | Standard EH flow orientation | Call for Pricing |
| A30206946 | HC - IE3 US 60Hz | 3Ph 230/460V 60Hz | Standard EH flow orientation | Call for Pricing |
| A30207934 | FX - IE3 ASIA 50Hz | 3Ph 200V 50Hz | Standard EH flow orientation | Call for Pricing |
| A30207945 | FX - IE3 EU/CN 50Hz | 3Ph 380–400V 50Hz | Standard EH flow orientation | Call for Pricing |
| A30208934 | FX - IE3 ASIA 60Hz | 3Ph 200V / 380V 60Hz | Standard EH flow orientation | Call for Pricing |
| A30208946 | FX - IE3 US 60Hz | 3Ph 230/460V 60Hz | Standard EH flow orientation | Call for Pricing |
| NRA998000 | EH500T3 ATEX | 3Ph 380–415V 50Hz | Standard EH flow orientation | Call for Pricing |
Maintenance, Oil & Repair Kits
| Item | Guidance |
|---|---|
| Lubricant | Hydrocarbon configuration: Edwards Ultragrade Performance 20. |
| VPS service kit | EH250/EH500 repair kit — part 30151800 |
| Service note | The process chamber is dry. Gearbox, coupling-cover and shaft-seal reservoirs still require the correct lubricant. |
Applications
Mechanical boosters are used to increase pumping speed and reduce pump-down time in industrial vacuum systems. Typical duties include heat treatment, metallurgy, vacuum coating, chemical processing, steel degassing, vacuum drying and large chamber evacuation. Final performance depends on the backing pump and system conductance.
VPS Resources
Need help sizing the booster system?
Send the required pumping speed, pressure range, backing pump, process gas, voltage, frequency, gas-flow orientation and seal requirements. VPS will help confirm the correct part number.
