Product Description

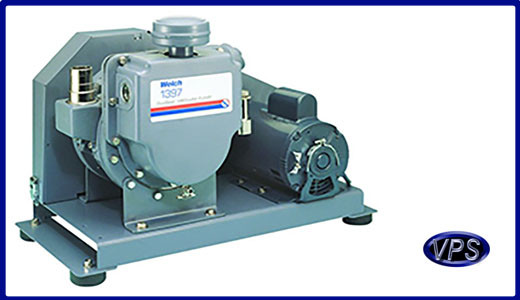

Welch DuoSeal 1397 Belt-Driven Vacuum Pump
Welch part number: 1397B-01
Factory configuration: 115 V / 60 Hz / 1-phase
Overview
The Welch DuoSeal 1397 is a belt-driven oil-sealed rotary-vane vacuum pump built for dependable laboratory, industrial and process service. Its low-speed belt drive, serviceable construction and established DuoSeal pumping mechanism support long operating life when the correct oil and maintenance schedule are used.
| Pumping speed | Ultimate pressure | Pump design | Oil capacity |
|---|---|---|---|
| 17.7 cfm / 500 L/min | 1 × 10⁻⁴ Torr | Two-stage | 1.2 L |
Configuration
| Field | This product |
|---|---|
| Welch part number | 1397B-01 |
| Model | DuoSeal 1397 |
| Electrical / factory configuration | 115 V / 60 Hz / 1-phase |
| Purchase status | Call for pricing and availability |
Features
- Low-speed belt drive supports smooth operation and long service life.
- Oil-sealed rotary-vane mechanism provides dependable vacuum performance.
- Serviceable construction supports routine seal, vane and gasket replacement.
- Factory motor and inlet configuration is identified by the exact Welch part number.
Technical Specifications
| Specification | Value |
|---|---|
| Pump design | Two-stage |
| Free-air displacement | 17.7 cfm / 500 L/min |
| Ultimate pressure | 1 × 10⁻⁴ Torr |
| Pump speed | 400 rpm |
| Oil capacity | 1.2 L |
| Motor rating | 1 hp |
| Inlet connection | 1.75-20 threaded; 1-5/8 in tubing |
| Approximate weight | 213 lb |
| Approximate dimensions (L × W × H) | 26 × 13.7 × 18.8 in |
Published performance is nominal and may vary with motor frequency, condition, lubricant, process gas and measurement method. Confirm the exact part number before ordering.
Available Configurations
| Welch part number | Electrical / factory configuration | Availability |
|---|---|---|
| 1397B-01 | 115 V / 60 Hz / 1-phase | This configuration |
| 1397M-01 | 230/460 V / 60 Hz / 3-phase | Call for pricing |
Maintenance, Oil & Filters
| Maintenance item | Recommended product or resource | Part number / notes |
|---|---|---|
| Vacuum pump oil | Welch DuoSeal / Gold Oil or verified VPS equivalent | Verify viscosity, process and material compatibility before substituting oil. |
| Repair kit | 1397 major repair kit | 1397PI |
| Exhaust filtration | Disposable exhaust filter for 1397 | VPSF-1397; confirm fit and connection before ordering |
| Resource Center | Welch Vacuum Pump Resource Center | VPS-owned cross references, parts and maintenance guidance. |
Applications
Laboratory vacuum, filtration, distillation, vacuum ovens, degassing, drying and general industrial vacuum.
Resources
Need help confirming the correct Welch pump?
Have the required voltage, phase, frequency, inlet connection and process details ready. We will help verify the part number and application.
