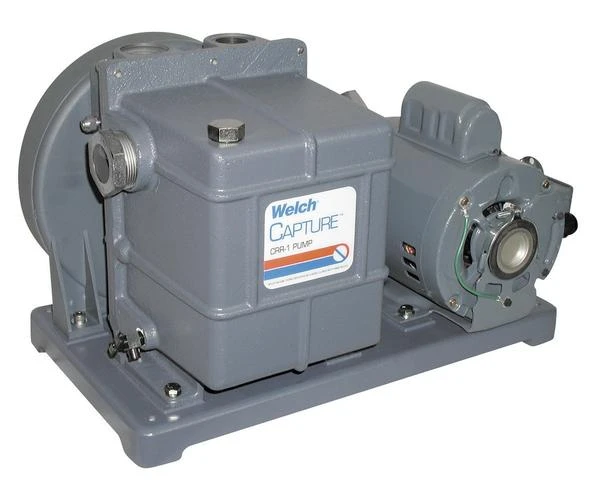

Welch Capture CRR-1 Refrigerant Recovery Pump Belt-Driven Vacuum Pump
Welch part number: CRR-1A
Factory configuration: 115 V / 60 Hz / 1-phase
Overview
The Welch Capture CRR-1 is a belt-driven refrigerant-recovery vacuum pump designed to collect refrigerant and solvent vapor in an appropriate downstream recovery setup. Its single-stage design prioritizes vapor handling and recovery duty rather than the deep-vacuum performance of a two-stage DuoSeal pump.
| Pumping speed | Ultimate pressure | Pump design | Oil capacity |
|---|---|---|---|
| 10.6 cfm / 300 L/min | 3 × 10⁻² Torr / 0.04 mbar | Single-stage capture pump | 2.4 L |
Configuration
| Field | This product |
|---|---|
| Welch part number | CRR-1A |
| Model | Capture CRR-1 Refrigerant Recovery Pump |
| Electrical / factory configuration | 115 V / 60 Hz / 1-phase |
| Purchase status | Call for pricing and availability |
Features
- Low-speed belt drive supports smooth operation and long service life.
- Oil-sealed rotary-vane mechanism provides dependable vacuum performance.
- Serviceable construction supports routine seal, vane and gasket replacement.
- Factory motor and inlet configuration is identified by the exact Welch part number.
- Capture-pump design supports refrigerant and solvent recovery applications.
Technical Specifications
| Specification | Value |
|---|---|
| Pump design | Single-stage capture pump |
| Free-air displacement | 10.6 cfm / 300 L/min |
| Ultimate pressure | 3 × 10⁻² Torr / 0.04 mbar |
| Pump speed | 525 rpm |
| Oil capacity | 2.4 L |
| Motor rating | 1 hp |
| Inlet connection | 1 in NPT; 7/16 in tubing |
| Approximate weight | 136 lb |
| Approximate dimensions (L × W × H) | 22 × 15 × 18 in |
Published performance is nominal and may vary with motor frequency, condition, lubricant, process gas and measurement method. Confirm the exact part number before ordering.
Available Configurations
| Welch part number | Electrical / factory configuration | Availability |
|---|---|---|
| CRR-1A | 115 V / 60 Hz / 1-phase | This configuration |
Maintenance, Oil & Filters
| Maintenance item | Recommended product or resource | Part number / notes |
|---|---|---|
| Vacuum pump oil | Welch DuoSeal oil; confirm current oil and process requirements | Recovery service may require application-specific oil handling. |
| Repair kit | Welch repair kits | Confirm model and serial number |
| Exhaust filtration | Welch exhaust filtration | Confirm connection and process; confirm fit and connection before ordering |
| Resource Center | Welch Vacuum Pump Resource Center | VPS-owned cross references, parts and maintenance guidance. |
Applications
Refrigerant and solvent recovery systems with an appropriate downstream collection setup.
Resources
Need help confirming the correct Welch pump?
Have the required voltage, phase, frequency, inlet connection and process details ready. We will help verify the part number and application.
