HV8000 Vertical-Flow Bare-Shaft Booster
New HV8000 mechanical booster • Part A31101985
The Edwards HV8000 is a heavy-duty, water-cooled high-vacuum mechanical booster for aggressive industrial and chemical service. Horizontal and vertical gas-flow versions are available.
Features
- 7,200 m³/h nominal displacement at 50 Hz
- Water-cooled mechanical shaft seal and heavy-duty helical gears
- Horizontal or vertical gas-flow configuration
- Optional aftercooler, shaft-seal purge, monitoring and VFD integration
Performance Graph

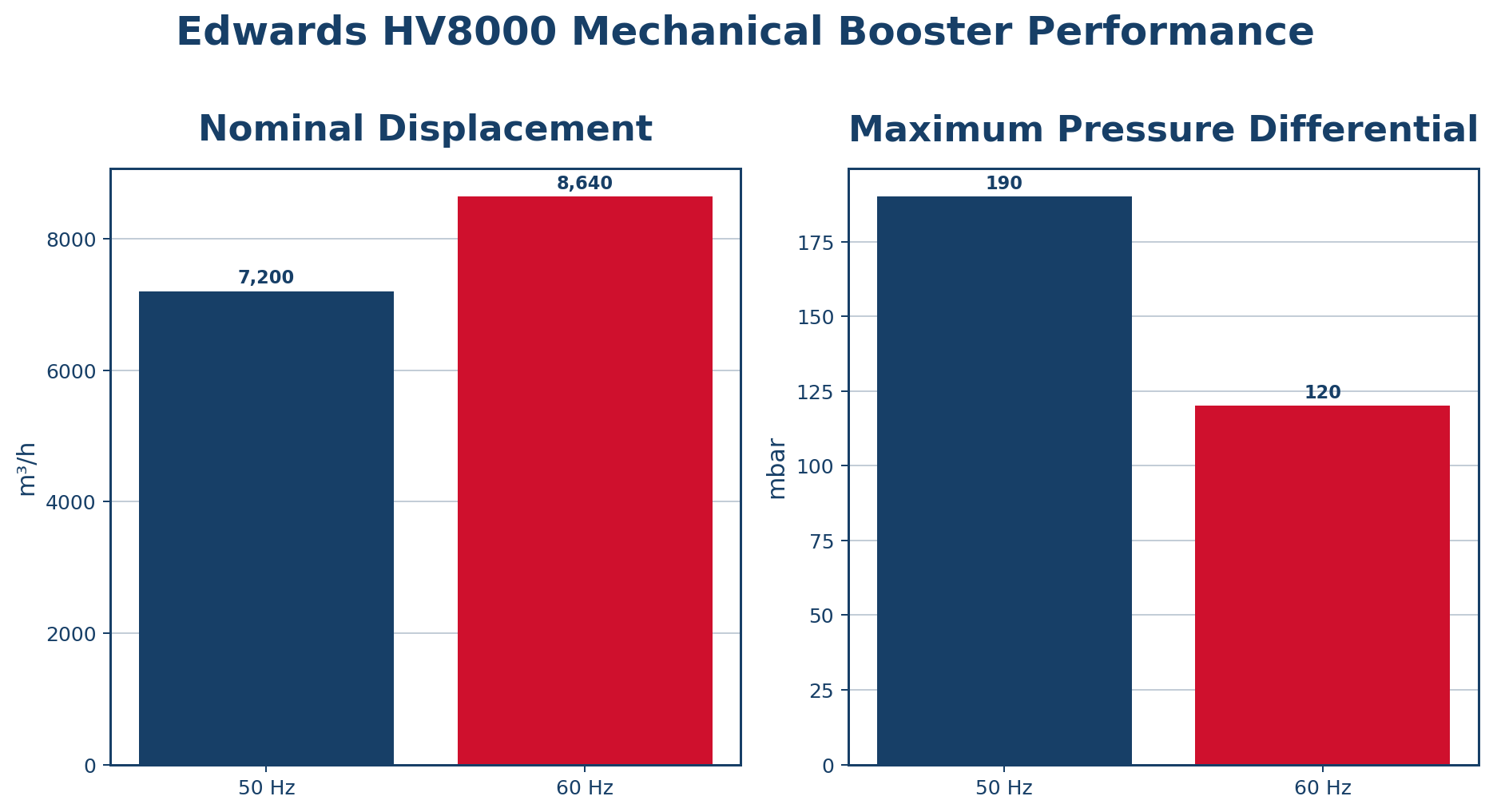

The graph is a VPS presentation of published Edwards family data. Confirm operating point, backing-pump capacity, process gas and motor selection before ordering.
Technical Specifications
| Specification | Value |
|---|---|
| Model | HV8000 |
| Part number | A31101985 |
| Selected configuration | HV8000 Vertical-Flow Bare-Shaft Booster |
| Nominal displacement | 7,200 m³/h (4,241 cfm) at 50 Hz; 8,640 m³/h (5,089 cfm) at 60 Hz |
| Maximum pressure differential | 190 mbar (143 Torr) at 50 Hz; 120 mbar (90 Torr) at 60 Hz |
| Inlet connection | ASA/ANSI 10" |
| Outlet connection | ASA/ANSI 10" |
| Motor / drive | 15 kW / 20 hp at 50 Hz; 18.5 kW / 25 hp at 60 Hz |
| Cooling | Water cooled |
| Sound level | 82 dB(A) |
| Typical weight | 1,257 lb (570 kg) |
| Typical dimensions | 1,830 × 670 × 638 mm (L × W × H) |
| Lubricant capacity | 8.3 L minimum gearbox lubricant |
| Ultimate pressure | 0.02 Pa nominal |
Available Configurations
| Part number | Configuration | Electrical / drive | Gas flow | Availability |
|---|---|---|---|---|
| A31101985 | HV8000 Vertical-Flow Bare-Shaft Booster | Bare shaft; select local motor and drive | Vertical gas flow | This configuration |
| A31102985 | HV8000 Horizontal-Flow Bare-Shaft Booster | Bare shaft; select local motor and drive | Horizontal gas flow | Call for Pricing |
Maintenance, Oil & Repair Kits
| Item | Guidance |
|---|---|
| Gearbox lubricant | Mobil SHC 629 or the approved equivalent for the exact pump. |
| Mechanical seal and sleeve kit | Edwards A31101803 — <a href="/contact-us/">email VPS to confirm availability</a>. |
| Service note | Confirm cooling-water quality, seal purge requirements and flow orientation before commissioning. |
Applications
Mechanical boosters are used to increase pumping speed and reduce pump-down time in industrial vacuum systems. Typical duties include heat treatment, metallurgy, vacuum coating, chemical processing, steel degassing, vacuum drying and large chamber evacuation. Final performance depends on the backing pump and system conductance.
VPS Resources
Need help sizing the booster system?
Send the required pumping speed, pressure range, backing pump, process gas, voltage, frequency, gas-flow orientation and seal requirements. VPS will help confirm the correct part number.
