Product Description
Repair Kit for Leybold SOGEVAC SV100B, SV100, SV120B, SV65B, SV300B - PL971427680 - OEM Equivalent
Overview
Repair Kit PL971427680 for SV100B, SV100, SV120B, SV65B, SV300B.
Use the exact part number and pump identification plate to confirm compatibility before installation.
Compatible Pump Models
- SV100B
- SV100
- SV120B
- SV65B
- SV300B
Product Details
| Part Number | PL971427680 |
|---|---|
| Product Type | Repair Kit |
| Compatible Brand | Leybold |
| Pump Family | Sogevac |
| Compatible Models | SV100B, SV100, SV120B, SV65B, SV300B |
| Classification | OEM Equivalent |

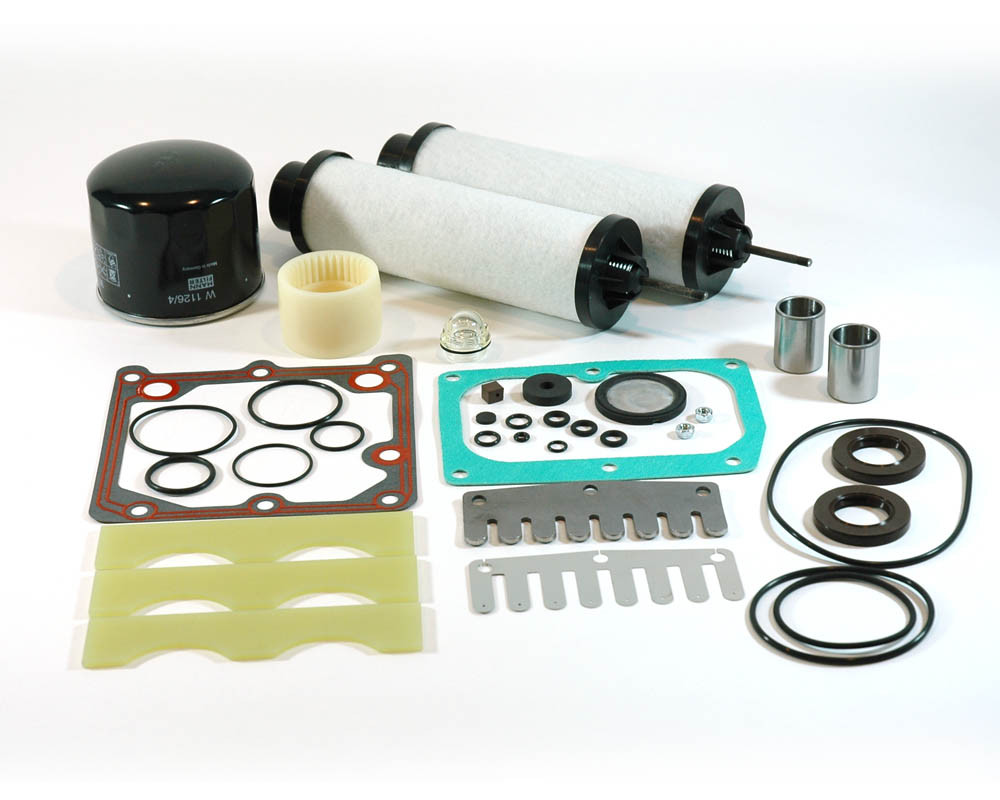

What This Kit Includes
The complete verified component list for this kit appears in the bill of materials below.
Complete Bill of Materials
Only exact, confirmed Vacuum Pump Supply product pages are linked. Unlinked part numbers remain in the table for an accurate kit record.
| Part Number | Description | Qty |
|---|---|---|
| PL71217410 | O-Ring, 33 x 3.5 mm - Viton | 1 |
| PL71213150 | Oil Filter, Leybold SOGEVAC SV100B / SV120B | 1 |
| PL71015460 | Intake Valve, Viton | 1 |
| 320067 | O-Ring, 63.09 x 3.53 mm - Viton | 1 |
| PL23970211 | O-Ring, 50 x 3 mm - Viton | 2 |
| PL71418840 | Stop Valve, HRS | 1 |
| PL71418890 | Exhaust Flange Gasket, Paper | 1 |
| PL71417060 | Membrane Disk, 12 x 12 mm | 1 |
| PL71417240 | O-Ring, 126.59 x 3.53 mm - Viton | 1 |
| PL71417260 | O-Ring, 9.12 x 3.53 mm - Viton | 3 |
| PL71417300 | Exhaust Filter Assembly, SV65B / SV100B | 2 |
| 71418750G | GX Composite Vane | 3 |
| PL71418780 | Coupling, Nylon, Bowex M 28 | 1 |
| 310113 | Shaft Seal | 2 |
| 300161 | Ring Gasket, SOGEVAC SV100B / SV120B / SV300B | 1 |
| 640020 | Cylindrical Seal | 1 |
| 320387 | O-Ring, 160 x 3 mm - Viton | 1 |
| 300189 | Formed O-Ring Gasket | 1 |
| PL971424570 | Ring, 8.30 x 29.5 x 6.34 mm | 1 |
| 923031 | O-Ring, Viton | 1 |
| 900048 | O-Ring, 8 x 2 mm - Viton | 1 |
| 82007 | O-Ring, 10.77 x 2.62 mm - Viton | 4 |
| 79134 | O-Ring, 8 x 2 mm - Viton | 1 |
| 420056 | Lock Washer, Split, M8 | 3 |
| PL971427720 | Sleeve, Rotor Ring, SV100B | 2 |
| PL71421340 | O-Ring, 82.14 x 3.53 mm - Viton | 1 |
| PL71418940 | Flat Gasket, Paper, SOGEVAC SV100B / SV120B | 1 |
| PL71217582 | O-Ring, 27 x 2.5 mm - Viton | 1 |
| PL71212428 | Oil Sight Glass | 1 |
| PL71212503 | Float Valve Seal | 1 |
OEM Cross Reference
| VPS Part Number | PL971427680 |
|---|---|
| Classification | OEM Equivalent |
Use the pump parts diagram and model/serial information to verify any manufacturer cross reference.
Recommended Oil
Drain service oil and refill with the grade specified for your exact pump. Browse VPS vacuum pump oils.
When Should This Be Replaced or Rebuilt?
Plan service when the pump can no longer hold its specified ultimate pressure, shows rising noise or temperature, leaks oil, or reaches its scheduled maintenance interval. Inspect hard parts before reassembly.
Resources
Related Products
Why Buy From Vacuum Pump Supply?
- Vacuum pump specialists since 2006
- OEM and OEM-equivalent options
- Technical support from vacuum pump specialists
- Direct access to repair parts, oils, and service resources
FAQ
Will this fit every Leybold SOGEVAC pump?
No. Fitment is part-number and model specific. Confirm the pump model and serial number.
Are all bill-of-material items linked?
Only parts with a confirmed live VPS product page are linked. Unlinked numbers remain in the table for reference.
Should I replace the oil during service?
Yes. Use fresh oil of the grade and quantity specified by the pump manual.
Fitment and Product Classification
This is an OEM-equivalent product supplied by Vacuum Pump Supply; it is not represented as manufactured by Leybold.
Confirm part number PL971427680, pump model, and serial number before ordering. Email Vacuum Pump Supply if you need help confirming fitment.
