Product Description

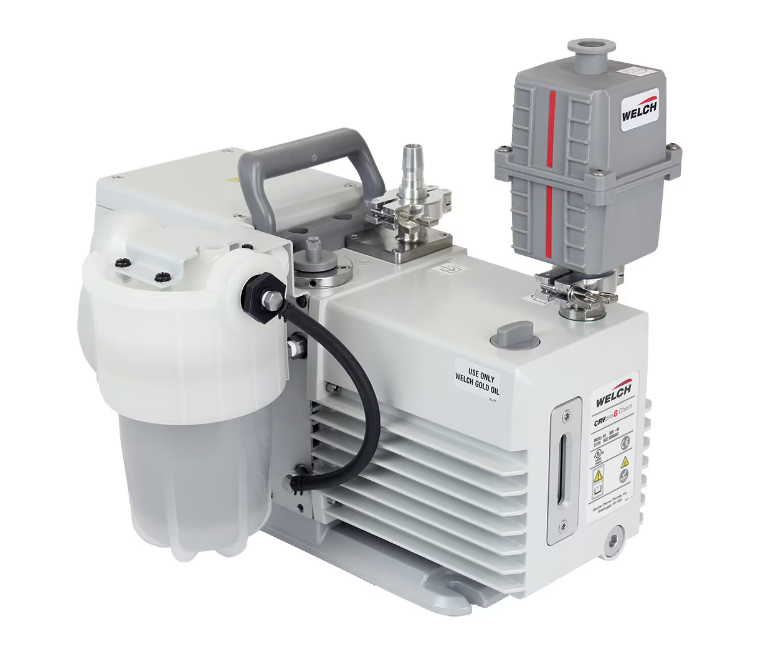

Welch CRVpro 8 CHEM Two-Stage Rotary Vane Vacuum Pump
Welch part number: 3082-80
Factory configuration: 220 V / 50 Hz / 1-phase chemical-duty package
Overview
The Welch CRVpro 8 CHEM is a chemical-duty two-stage rotary-vane vacuum-pump package for processes using aggressive vapors. It combines the CRVpro 8 pump with continuous acid neutralization and oil filtration to help protect the pump during chemical service.
| Free-air displacement | Ultimate pressure | Pump design | Oil capacity |
|---|---|---|---|
| 5.6 cfm / 158 L/min | 0.0015 Torr | Two-stage direct drive | 1.0 L |
Configuration
| Field | This product |
|---|---|
| Welch part number | 3082-80 |
| Model | CRVpro 8 CHEM |
| Electrical / factory configuration | 220 V / 50 Hz / 1-phase chemical-duty package |
| Purchase status | Call for Pricing |
Chemical-service note: Provide the process chemistry and requested lubricant when asking for a quote. PFPE/Fomblin service requires a pump specifically prepared for PFPE.
Features
- Two-stage direct-drive rotary-vane design provides deep vacuum in a compact footprint.
- Forced oil lubrication supports stable operation and dependable pump-module protection.
- Built-in anti-suckback protection helps prevent oil migration after power loss.
- Gas ballast supports vapor handling and routine process use.
- Protective internal coatings and a large oil capacity help reduce contamination effects.
- Continuous acid neutralization helps protect the pump during aggressive-vapor service.
- Oil filtration supports longer lubricant life in demanding chemical processes.
Technical Specifications
| Specification | Value |
|---|---|
| Pump design | Two-stage, oil-sealed, direct-drive rotary vane |
| Free-air displacement at 60 Hz | 5.6 cfm / 158 L/min |
| Ultimate pressure | 0.0015 Torr |
| Pump speed at 60 Hz | 1740 rpm |
| Noise level | 50 dBA |
| Oil capacity | 1.0 L |
| Inlet / exhaust flange | NW16 |
| Recommended tubing ID | 5/8–3/4 in ID |
| Approximate weight | 49.6 lb |
| Approximate dimensions (L × W × H) | 18.2 × 6.1 × 9.2 in |
Published performance is nominal and may vary with motor frequency, condition, lubricant, process gas and measurement method. Confirm the exact part number before ordering.
Available Configurations
| Welch part number | Electrical / factory configuration | Availability |
|---|---|---|
| 3081-01 | 115 V / 60 Hz / 1-phase | Call for Pricing |
| 3082-01 | 230 V / 50–60 Hz / 1-phase | Call for Pricing |
| 3081-02 | 115 V / 60 Hz / 1-phase; 3/4 in flare fitting | Call for Pricing |
| 3087T-01 | 208–230/460 V / 60 Hz / 3-phase | Call for Pricing |
| 3086E-01 | 115/208–230 V / 60 Hz / 1-phase explosion-proof motor | Call for Pricing |
| 3082-80 | 220 V / 50 Hz / 1-phase chemical-duty package | This configuration |
Maintenance, Oil & Filters
| Maintenance item | Recommended product or resource | Part number / notes |
|---|---|---|
| Vacuum pump oil | Welch Premium or Gold oil; confirm process compatibility | This CHEM package is not automatically a PFPE configuration. Use Fomblin only when the exact pump is factory prepared for PFPE service. |
| Repair kit | CRVpro 8 major repair kit | WSK004 |
| Exhaust / oil filtration | Email us to confirm the correct filter | Confirm the current acid-neutralization and oil-filter elements for the exact package serial number. |
| Resource Center | Welch Vacuum Pump Resource Center | VPS-owned cross references, repair parts and maintenance guidance. |
Applications
Freeze drying, vacuum ovens, Schlenk lines, vacuum concentration, backing turbomolecular pumps, degassing and vessel or chamber evacuation. Direct-drive pumps are not recommended for sustained operation above 30 Torr.
Resources
Need help confirming the correct Welch pump?
Have the required voltage, phase, frequency, inlet connection and process details ready. We will help verify the part number and application.
