Product Description

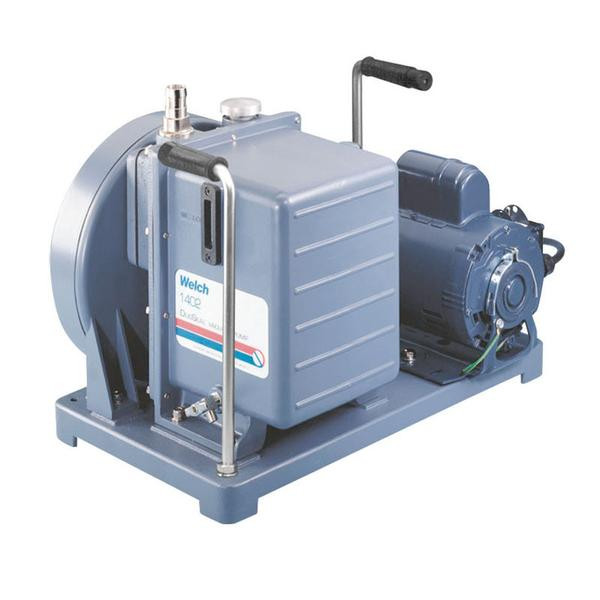

Welch DuoSeal 1402 Refrigeration Duty Belt-Driven Vacuum Pump
Welch part number: 1402B-46
Factory configuration: 115 V / 60 Hz / 1-phase; 3/4 in ID flare inlet
Overview
The Welch DuoSeal 1402 Refrigeration Duty is a factory refrigeration-service configuration of the 1402 belt-driven pump. It combines the familiar DuoSeal oil-sealed mechanism with a service connection selected for refrigeration and recovery work.
| Pumping speed | Ultimate pressure | Pump design | Oil capacity |
|---|---|---|---|
| 5.6 cfm / 160 L/min | 1 × 10⁻⁴ Torr | Two-stage | 2.1 L |
Configuration
| Field | This product |
|---|---|
| Welch part number | 1402B-46 |
| Model | DuoSeal 1402 Refrigeration Duty |
| Electrical / factory configuration | 115 V / 60 Hz / 1-phase; 3/4 in ID flare inlet |
| Purchase status | Call for pricing and availability |
Features
- Low-speed belt drive supports smooth operation and long service life.
- Oil-sealed rotary-vane mechanism provides dependable vacuum performance.
- Serviceable construction supports routine seal, vane and gasket replacement.
- Factory motor and inlet configuration is identified by the exact Welch part number.
- Refrigeration-duty inlet connection is supplied for recovery and service work.
Technical Specifications
| Specification | Value |
|---|---|
| Pump design | Two-stage |
| Free-air displacement | 5.6 cfm / 160 L/min |
| Ultimate pressure | 1 × 10⁻⁴ Torr |
| Pump speed | 525 rpm |
| Oil capacity | 2.1 L |
| Motor rating | 0.5 hp |
| Inlet connection | 3/4 in ID flare inlet |
| Approximate weight | 132 lb |
| Approximate dimensions (L × W × H) | 20 × 12 × 15 in |
Published performance is nominal and may vary with motor frequency, condition, lubricant, process gas and measurement method. Confirm the exact part number before ordering.
Available Configurations
| Welch part number | Electrical / factory configuration | Availability |
|---|---|---|
| 1402B-46 | 115 V / 60 Hz / 1-phase; 3/4 in ID flare inlet | This configuration |
Maintenance, Oil & Filters
| Maintenance item | Recommended product or resource | Part number / notes |
|---|---|---|
| Vacuum pump oil | Welch DuoSeal / Gold Oil or verified VPS equivalent | Verify viscosity, process and material compatibility before substituting oil. |
| Repair kit | 1402 major repair kit | 1402PI |
| Exhaust filtration | Disposable exhaust filter for 1402 / 1376 | VPSF-1402; confirm fit and connection before ordering |
| Resource Center | Welch Vacuum Pump Resource Center | VPS-owned cross references, parts and maintenance guidance. |
Applications
Refrigeration service, recovery equipment, evacuation and process support using the specified inlet connection.
Resources
Need help confirming the correct Welch pump?
Have the required voltage, phase, frequency, inlet connection and process details ready. We will help verify the part number and application.
