Edwards RV12 Major Service Kit with Sleeve – OEM Maintenance Package
OEM Maintenance Package for Edwards RV12 Vacuum Pumps
This is the most complete service package available for Edwards RV12 vacuum pumps. It combines the standard P65201131 Clean & Overhaul Kit, the A65501130 Blade Kit, and the A65201136 Shaft Sleeve Kit to provide everything required for a major service.
Replacing vanes, shaft seals, shaft sleeve components, gaskets, springs, valve components, and O-rings helps restore vacuum performance, reduce oil contamination, improve ultimate vacuum levels, and extend pump life.
Package Includes
| Part Number | Description | Qty |
|---|---|---|
| 02109066 | Shaft Seal, Viton | 1 |
| P65201131 | Clean & Overhaul Kit - Viton | 1 |
| A65201136 | Shaft Sleeve Kit | 1 |
| A65501130 | RV12 Blade Kit | 1 |

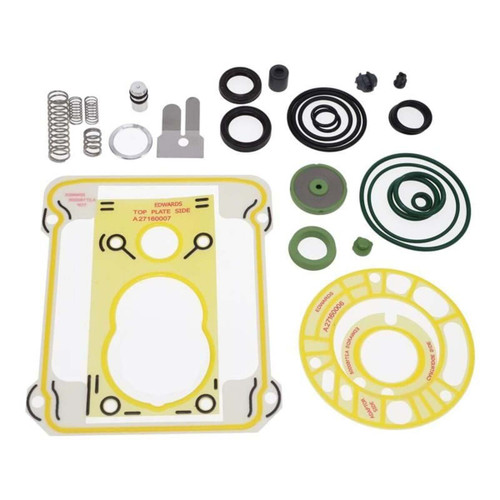

Expanded BOM – Included in P65201131
| Part Number | Description | Qty |
|---|---|---|
| A25908127 | Oldham Coupling RV3/RV5/RV8/RV12 | 1 |
| A25908123 | Exhaust Diaphragm FKM GP RVP | 1 |
| A21071077 | Coupling Element RV Pump | 1 |
| A26501040 | U Seal FKM GP RVP | 1 |
| 27154-018 | Shoulder Washer, Ballast | 1 |
| 20525-048 | Spring, Ballast Control, Stainless Steel | 1 |
| H02109125 | Outer Shaft Seal Spacer RV | 1 |
| Various | O-Ring, Nitrile 21.5 ID x 3.0 Section | 3 |
| H02122079 | O-Ring, Nitrile 49.5 ID x 3.0 Section | 1 |
| Various | O-Ring, Nitrile 32.5 ID x 3.0 Section | 1 |
| Various | O-Ring, FKM GP 7.6 ID x 2.4 Section | 1 |
| 20525-049 | Spring, Inlet Valve, Stainless Steel | 1 |
| Various | O-Ring, FKM GP 57.6 ID x 2.4 Section | 1 |
| Various | O-Ring, Nitrile 42.5 ID x 3.0 Section | 1 |
| 27160707 | Top Plate Gasket | 1 |
| 02109066 | Shaft Seal BABSL 20 x 30 x 7 | 1 |
| A25908129 | Oil Pressure Valve RV | 1 |
| A26501039 | Valve Pad | 1 |
| 20525-047 | Spring, Dump Valve RV | 2 |
| A27160005 | Oil Box Printed Gasket RV | 1 |
| A27160006 | Printed Gasket Cartridge RV | 1 |
| Various | O-Ring, FKM GP 1.109 ID x .139 Section | 3 |
| Various | O-Ring, FKM GP 9.6 ID x 2.4 Section | 1 |
| A27160008 | Seal Carrier Gasket | 1 |
| A65201005 | Air Bleed Assembly RV | 1 |
| A65201029 | RV Reed Valve | 1 |
| 02109124 | Lip Seal FKM GP 25 x 35 x 7 | 1 |
| A25908226 | RV Dump Valve | 1 |
| Various | O-Ring, FKM GP 69.5 ID x 3.0 Section | 1 |
| A65201019 | Motor Ducting Sheet RV | 1 |
Why Replace the Shaft Sleeve?
The shaft sleeve is a common wear item on Edwards RV vacuum pumps. Over time the sealing surface becomes grooved, causing premature shaft seal failure and oil leakage. Replacing the shaft sleeve during a major service helps ensure proper sealing and longer pump life.
When Should an Edwards RV12 Be Rebuilt?
- Oil leaks around the coupling area
- Reduced vacuum performance
- Slow pumpdown times
- Excessive oil consumption
- Worn or chipped vanes
- High service hours
Recommended Add-Ons
- Vacuum Pump Oil: Plus UG19 Oil - 1 Liter
- Vacuum Pump Oil: Plus UG19 Oil - 4 Liter
- Oil Mist Filter: EMF10 Oil Mist Filter
- Flushing Fluid: FF-005 Vacuum Pump Flushing Fluid
- Oil Cross Reference: Vacuum Pump Oil Cross Reference Chart
- Edwards RV Resources: Edwards RV Pumps, Repair Parts & Kits
Compatible Pumps
- Edwards RV12
Type: Major Service Kit with Sleeve
Condition: New
OEM Components: Yes
Includes Vanes: Yes
Includes Shaft Sleeve Kit: Yes
